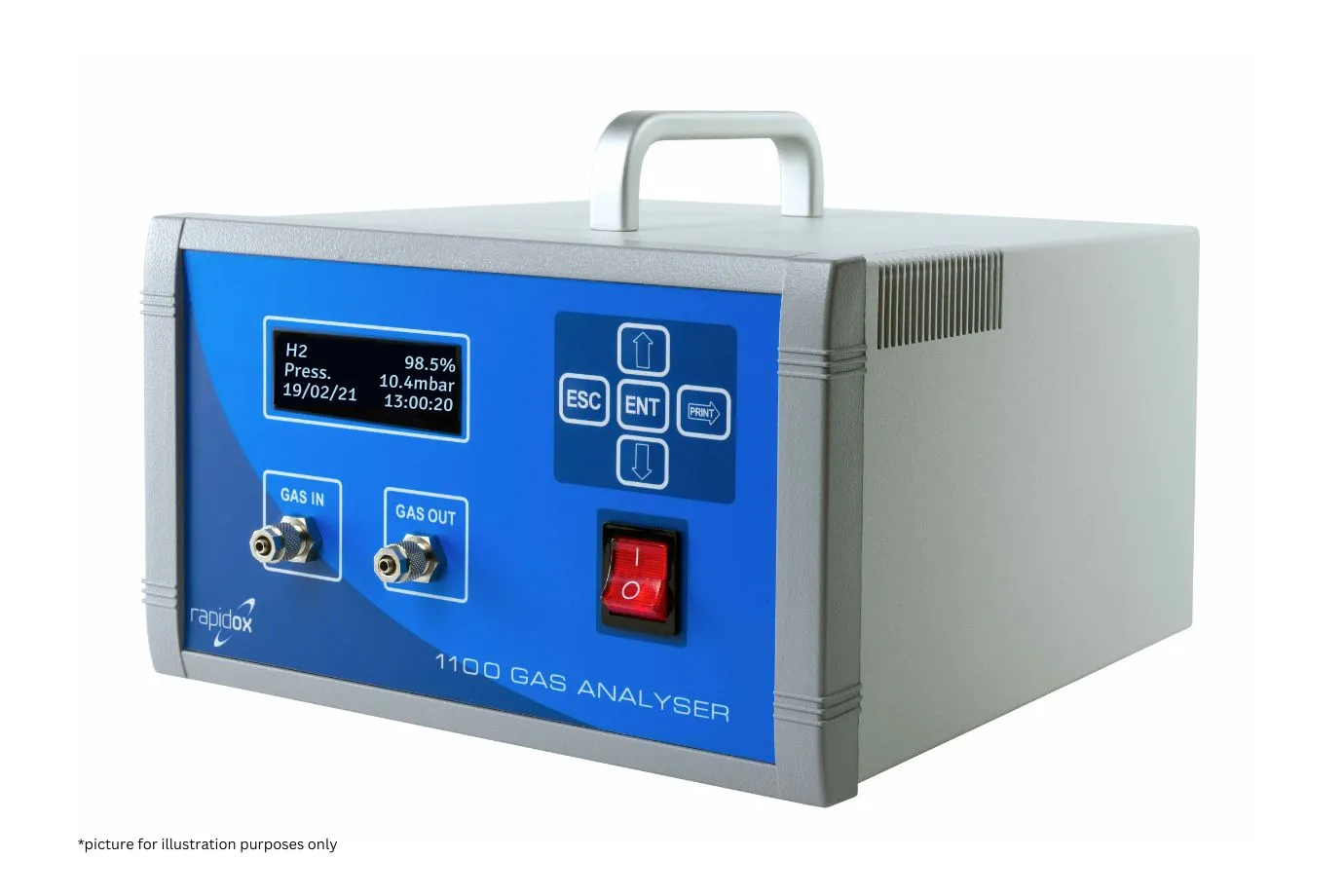

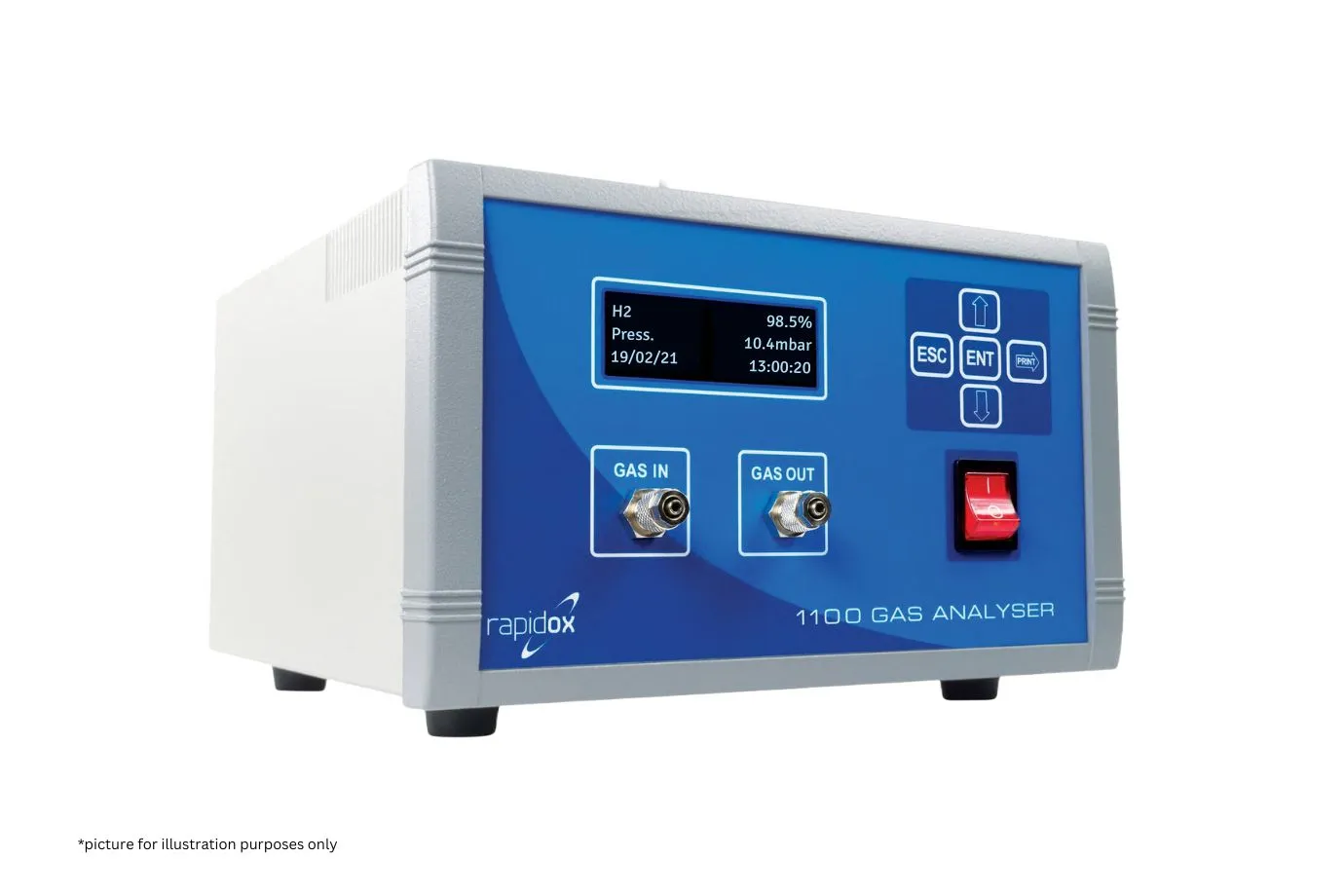

Rapidox 1100 Hydrogen Analyser
Measures: H₂
The Rapidox 1100-H hydrogen (H2) gas analyser is the company’s most cost-effective and versatile hydrogen gas analyser fitted with a Thermal Conductivity gas Detector.
The Thermal Conductivity Detector (TCD) is a state-of-the art German engineered sensor and is the most common and preferred solution for hydrogen measurement providing fast and accurate gas analysis over the range 0% to 100% H2 in simple binary gas systems where the hydrogen is mixed with another known background gas. It is particularly suitable for aggressive industrial applications as long as the sample gas is filtered for dust and particles and is non-condensing. The sensor has a 50°C heated sensor chamber to overcome drift caused by ambient temperature changes. A common application is measuring the composition of hydrogen purge gas in gas-cooled turbines.
Rapidox 1100 Single Gas Analyser
Single Gas
Overview
TCD sensors (also known as Katharometers) are highly suitable for measuring gases that have a thermal conductivity value significantly different to air, as long as the gas mixture is simple. Examples include H2 in mixtures of nitrogen (N2) or carbon dioxide (CO2). The sensor can be factory calibrated for a specific gas mixture such as hydrogen in argon for example.
All Rapidox gas analysers used in flammable gas applications are fitted with an internal flashback arrestor as standard.

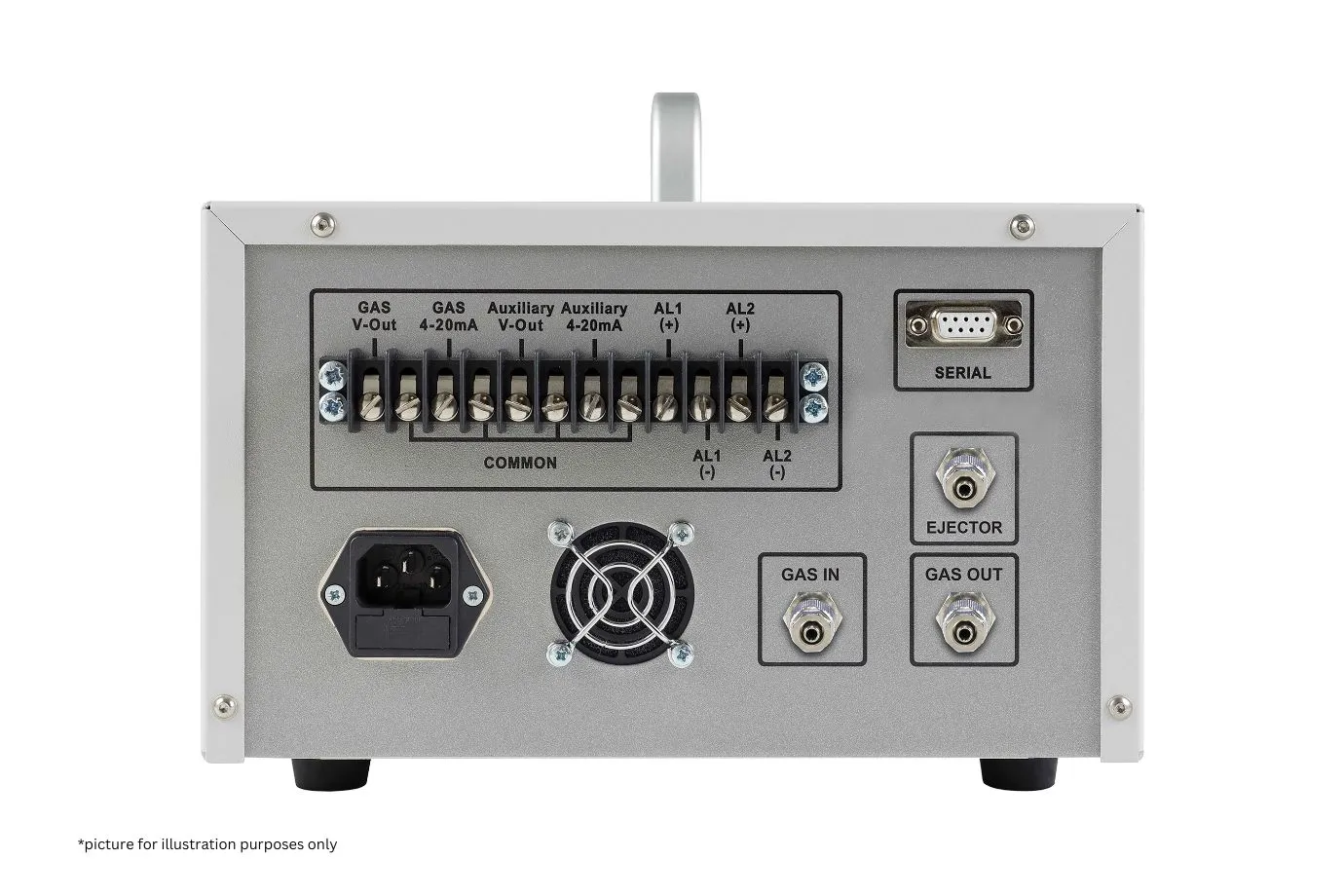

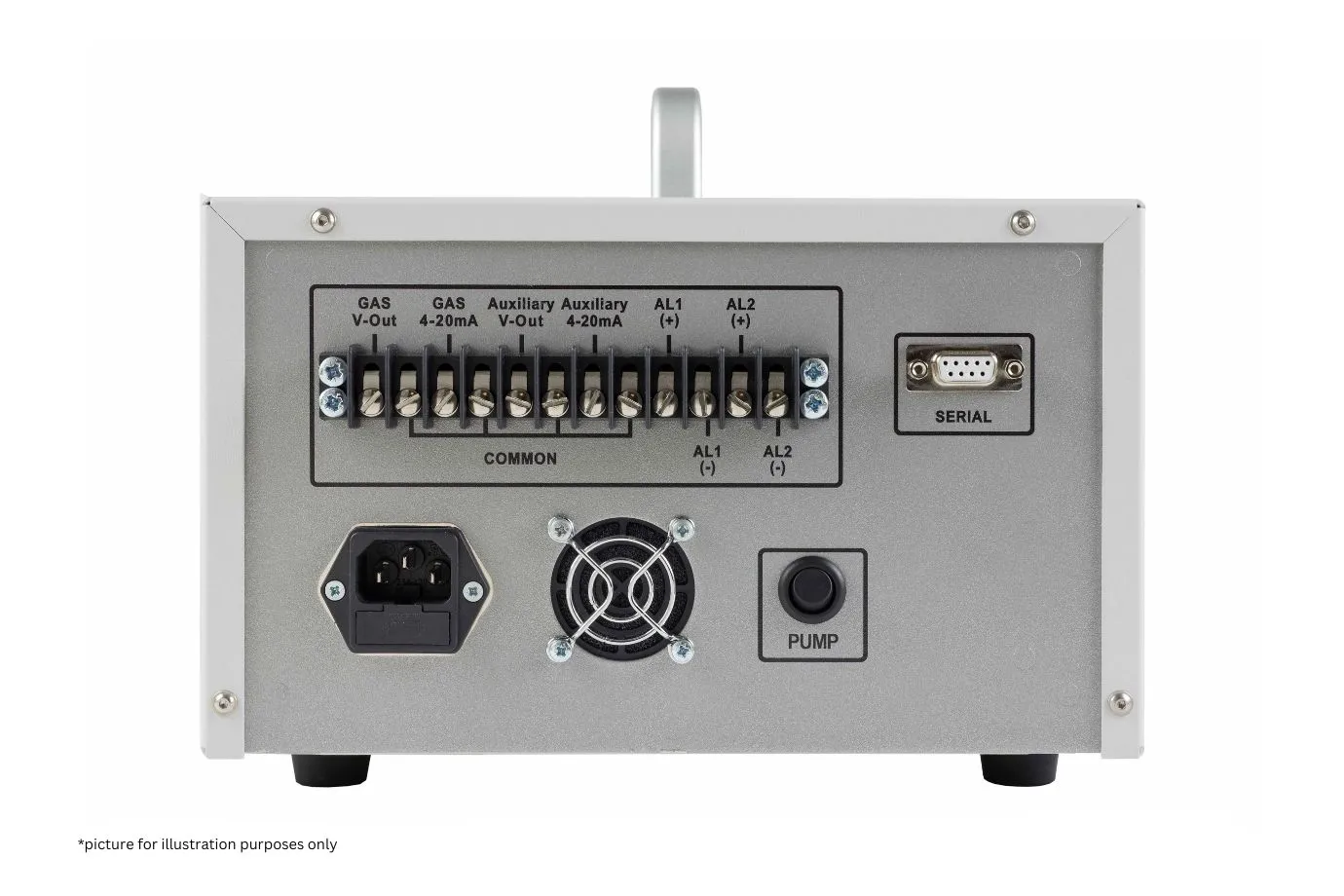

Please note that TCD sensors are not very reliable in complex gas mixtures where there are several gases with different thermal properties. The TCD is an indirect sensor that measures the overall thermal conductivity of a gas and interprets this as a composition based on a factory calibration. The standard R1100-H hydrogen analyser is available in various ranges of H2 selected at the time of ordering. The standard ranges are 0-10% and 0-100% in a background of nitrogen, with a choice of gas fittings on the front or rear of the instrument. Upgrades to Swagelok fittings (1/4” or 6mm) are available at the time of order. Each version is available with a choice of internal electric sample pump or vacuum ejector pump.
Special variations of the R1100-H model include:
1) A stainless steel IP54 instrument version with 316 stainless steel instrument case and sealed gasket joints, designed primarily for the welding, food and pharma industries.
2) A 4U bezel mounted version compatible with 19” rack mount systems.
Finally, the Rapidox 1100 hydrogen analyser complies with EMC Directive 2004 / 108 / EC. UL/ETL Certification Number: UL-61010-1.
Key features
- German engineered TCD sensor with specific H2 ranges available meaning more flexibility for the user
- Safety comes first – all hydrogen percent analysers are fitted with a flashback arrestor on the gas inlet
- Thermally stable in all atmospheric conditions as the sensor is heated to a constant 50°C
- Thanks to internal pressure & temperature correction technology, you can be assured of fast and accurate results every time
- Simple span-gas calibration procedure (with appropriate calibration gas) for after-sale longevity
- Low maintenance and long-life sensor expectancy – standards expected from a high quality analyser
- Two fully programmable alarms with open or closed relay for a complete monitoring solution
- Fully programmable digital and analogue outputs to further enhance the Rapidox 1100’s versatility
- Software package includes full control of the analyser, live graphing & Excel compatible data-logging
- Operates on any worldwide mains voltage (90-260VAC) resulting in ease of use wherever you go
- Options of front or rear gas fittings and bezel mounts (specify on order)
- The choice between a long-life variable speed pump or vacuum ejector option
- For more peace of mind, a password protection feature comes as standard
- Complies with EMC Directive 2004 / 108 / EC. UL/ETL Certification Number: UL-61010-1
